Press Releases
JUNE 2017
Drop In / Surface Mount Package AVAILABLE NOW FOR Comb (Harmonic) Generators With Pre-Amplifier GCA Series Input 250 MHz and Up
Herotek has expanded pre-amp comb generator GCA Series to include our new .750" (N3 package) long surface mount package for convenient placement on PCB Boards. Our GCA Series Comb Generators are used for Frequency Multipliers, Frequency Synthesizers, and built-in test source. GCA Series requires only +10 dBm or 0 dBm input for input frequency ranges from 250 MHz to 2000 MHz. Our GC Series (without preamp) also is offered in our "L" package, which is .53" long. To review specs, CLICK here. Please consult the factory for custom configuration and more detailed model specifications.
Herotek has expanded pre-amp comb generator GCA Series to include our new .750" (N3 package) long surface mount package for convenient placement on PCB Boards. Our GCA Series Comb Generators are used for Frequency Multipliers, Frequency Synthesizers, and built-in test source. GCA Series requires only +10 dBm or 0 dBm input for input frequency ranges from 250 MHz to 2000 MHz. Our GC Series (without preamp) also is offered in our "L" package, which is .53" long. To review specs, CLICK here. Please consult the factory for custom configuration and more detailed model specifications.
JULY 2011
Herotek has just introduced six new product families of High Power and Broadband Limiters and one product family of a High Frequency Comb Generator.
HIGH POWER BROADBAND LIMITER, 25 WATT CW, 0.5 - 12GHZHIGH POWER BROADBAND LIMITER, 40 WATT CW, 0.5 - 12GHZ PIN DIODE LIMITERS (VERY HIGH FREQUENCY), 1 WATT CW, 1 - 40GHZ PIN DIODE LIMITERS (EXTREMLY LOW FREQUENCY), 1WATT CW, 100KHZ - 3GHZ MEDIUM POWER LIMITERS, LOW FREQUENCY BROADBAND, 10 WATT CW, 0.01 - 6GHZ DC-3GHZ VOLTAGE LIMITERS, MAX INPUT +/- 10VDC OR +30DBM HIGH FREQUENCY COMB (HARMONIC) GENERATORS, 1 - 75GHz
HIGH POWER BROADBAND LIMITER, 25 WATT CW, 0.5 - 12GHZHIGH POWER BROADBAND LIMITER, 40 WATT CW, 0.5 - 12GHZ PIN DIODE LIMITERS (VERY HIGH FREQUENCY), 1 WATT CW, 1 - 40GHZ PIN DIODE LIMITERS (EXTREMLY LOW FREQUENCY), 1WATT CW, 100KHZ - 3GHZ MEDIUM POWER LIMITERS, LOW FREQUENCY BROADBAND, 10 WATT CW, 0.01 - 6GHZ DC-3GHZ VOLTAGE LIMITERS, MAX INPUT +/- 10VDC OR +30DBM HIGH FREQUENCY COMB (HARMONIC) GENERATORS, 1 - 75GHz
December 2009
LOW LEAKAGE LEVEL LIMITERS 0.01 - 18 GHz WITH LEAKAGE LEVELS AS LOW AS -10dBm

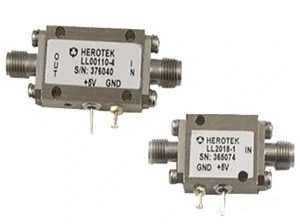

Herotek has just released new product family (LL Series) of low leakage level limiters. The frequency of these new limiter models go down to 10MHz and up to 18GHz with leakage levels as low as -10dBm. This new limiter product family have maximum input power handling capability of 1 Watt CW and 100 Watt Peak power along with options for leakage levels of -10dBm, -5dBm, 0dBm, or +5dBm. Bias of +5V is required with 5mA typical current draw. These new models are offered with removable connectors for circuit board assembly.To review model specs, CLICK here. Please consult the factory for custom configurations and more detailed model specifications.
July 2008
BROADBAND LOW LEAKAGE LIMITERS FROM 0.1 TO 18GHZ
Herotek has just introduced 6 new models of Broadband Limiters to our LS Low Leakage Limiter Series. The frequency of these new limiter models now go down to 100MHz and up to 18GHz. These new models have low insertion loss and typical limiting threshold of +6 dBm with a max leakage of +14 dBm at 1 Watt CW input power. These new models are offered in our standard B (SMA M/F), BF (SMA F/F), and L (surface mount, drop-in) packages. Please consult the factory for custom higher power limiters (up to 25 Watt CW or 1 KWatt pulse peak power) and custom limiters down to 10MHz.To review model specs, CLICK here.
September 2004
Low noise, ultra wide-band 0.01 to 20 GHz Amplifiers with very low power consumption. Also available in drop-in packaging for MIC integration.

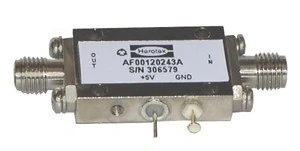

Herotek has released a new series of ultra wide-band amplifiers with a single unit covering frequency range from 0.01 to 20 GHz. These units have uncompromised input and output VSWR with excellent gain flatness. An example of one of these units, Model AF00120243A, has Minimum Gain of 24 dB, Maximum Noise Figure of 3.0, Maximum Gain Flatness of ± 1.5 dB, operating at +5V (90mA).To review model specs, CLICK here.
